WPC DOOR SILL, TRIM AND FURNITURE FRAME EXTRUSION LINE WITH
LAMINATION EQUIPMENT
The Conical Twin Screw Extruder is designed for the WPC profile application. We target to provide
the optimal solutions for the customer’s special needs with the
advantage of flexibility in material choices, high performance and
long durability.
Features
High flexibility in raw material combinations
Gentle and homogeneous plastification
Barrel with air cooling system
AC motors for low energy consumption
Control panel with color touch screen
Product Range
Screw diameters 51,65,80mm
Outputs from 100 to 400 kg/h
A wide range of calibration tables, providing an optimal and
tailor-made solution for every need and application.
Features
Motor-driven height and side movement
Motor-driven longitudinal movement
Manuel tilting movement
All parts that are in contact with water is made of SUS304
Low maintenance cost
Product Range
Table length from 4,5 to 14 mt
Vacuum pumps can be added upon request
Focusing on the energy saving system, Lima Extrusion provides LESS
(Lima Energy Saving System) to benefit vacuum energy savings up to
80%.
Features
Vacuum energy savings up to 80%
Vacuum pumps are driven by individual frequency
Inverters in order to use them according to the real need
Low noise level
Closed circuit to save as much water as possible during the
extrusion process
Product Range
Table length from 4,5 to 14 mt
Vacuum pumps can be added upon request
The caterpillar haul-off units, we provide the optimal solutions
for the customer’s needs with the advantage of flexibility in pad
dimensions and track lengths. Our haul-offs are equipped with two
independent tracks with gearboxes with continuous speed adjustment
by inverter.
Features
Flexibility in pad dimensions
Two independent tracks with gearboxes
Speed adjustment by inverter
Product Range
Pad width range from 220 to 500 mm
Tracks length from 1400 to 2000 mm
Two types of cutting units for profile applications: Saw
(TK-series) and guillotine (GK PRO) cutting systems. Depending on
the customer’s preference, we can install these units in our
integrated haul-off and cutting combination or supply separately.

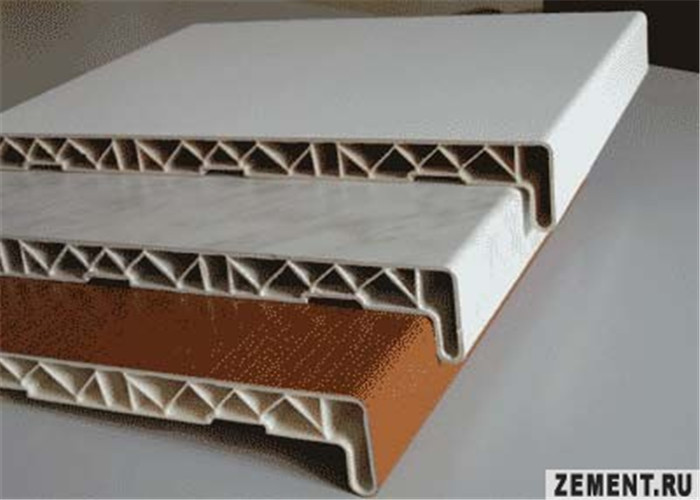

As option, for window sill and similar wide panel profiles, we also
supply cross-cut system (CC PRO) for cutting profiles into smaller
measurements in width. In addition to these units, our blade
cutting unit (BK-series) is ideal for cutting profiles with a max.
height of 8 mm, without any dust and chips.
Saw Cutter
Features
Different saw dimensions for special profiles
Low maintenance cost
Includes dust absorber unit
Adjustable cutting speed
Cutting width from up to 800 mmProduct Range
Cutting height from 10 to 100 mm
Titling Table Features
Table material is stainless steel
Tilting system is pneumatic
Product Range
Length is 6 mt on standard
Length can be modified upon request
Depending on profile geometry, we can also offer roller-type tables
The complete extrusion consists of following items:
- Conical Twin Screw Extruder:
It is used for melting and stirring plastic material. LANGBO adapts
special screw and barrel type that provide perfect mixing and
homogenous. We use special gear box for the Extruder which has
axial bearings. Transfer the motor to the screw. For minimizing
electricity consumption, we use the famous brand of driving motor
of “SIEMENS” on our Extruder. Automation system designed with PLC
and touch panel controller can be selected.
Our mould designing gives ideal viscosity to melt material for
profile producing. It gives profile or shape to plastic after
processing. All faces the plastic in contact with is polish, so
that frication losses minimized.
The shaped profile that come from mould is subjected to calibration
and cooling processing on the calibration table. The designing of
calibration table varies according to the type and characteristic
of the profile. The area that contacts with water is made of
stainless steel in order to prevent corrosion.
The designing of caterpillar haul-off changes depending on the
contact area that is related to the profile measurement. The
inverter control is standard on all caterpillar haul-off. For this
reason, as the speed can adjusted with respect to material output
rate. The caterpillar haul-off is also capable of making
measurement adjustment through speed control equipment.
In the speedy working condition, profile saw works with high
efficiency in term of cutting frequency. As the saw table and
clamps move synchronously. The saw cuts the profile in required
length.
During the cutting processing, swarf and dust appears, in order to
prevent these in production area, there is a dust collection unit
is integrated in saw cutter. This unit absorbs swarf, dust
effectively and removes to storage.
It operates on pneumatic cylinder.
