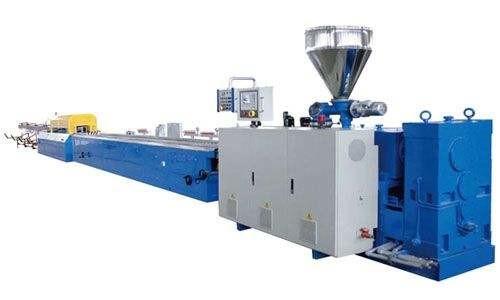

WPC outside decoration floor profile extrusion line / WPC extrusion
line
Description
The extrusion line adopts special designed barrel and screw, mould
and working crafts to produce wood plastic composite products,
simplified as WPC products. The extruder is of two steps mixing
extruding or make the wood and plastic into pellets first, then use
extruder to process; power and space saving, high capacity, stable
extruding presser; the pre-heating loader is installed on top of
the extruder, it can exhaust the moist remains in the wood power to
make sure the extruding section of extruder is full, and guarantee
a better plasticization result.
Consist of KFYwood plastic composite extruder extrusion making
production manufacturing machine line
1) Extruder
2) Die mould
3) Vacuum calibration table
4) Haul-off machine
5) Cut-off machine
6) Stacker
7) Granulating line
8) Crusher
9) Miller
10) Sanding Machine
11) Embossing machine
Advantages:
1.Using special designed screw and barrel for extruder.
2.Extruder stand-alone or two mixed directly extrusion,second
extrusion after granules, save power and space.
3.With high yield,stable extrusion pressure.
4.Screw design shear force is small,easy to cut teh wood fiber
material.
5.Screw and barrel using inlay and spray corrosion alloy, greatly
extend the service life.
The optimal designed screw is extruder
| Item | SJSZ-55/110 | SJSZ 65/132 | SJSZ 80/156 | SJSZ 92/188 |
| Screw Diameters(mm) | 55mm/110mm | 65mm/132mm | 80mm/156mm | 92mm/188mm |
| L/D Ratio | 22:1 | 22:1/25:1 | 22:1/25:1 | 22:1/25:1 |
| Output(Kg/h) | 80-120mm | 160-200 | 250-350 | 400-500 |
| Main Driving Power(kw) | 22 | 37 | 55 | 110 |
| Heating Powder(Kw) | 4 zones,20Kw | 4 zones, 24Kw | 5 zones, 38Kw | 6 zones, 54Kw |
