20-110mm PVC Pipe Making Line with 65/132 Conical Twin Screw
Extruder
LINE DETAILS
This line is applied to produce 20-110mm pvc pipe. Its output
capacity can be up to 300kg/h. We adopt Siemens Beide motor and
conical twin screw extruder with 45kw motor. Our screw and barrel
is HUAYE. The gearbos is Chinese famous brand made from Jiangyin.
It has very good performance. All the electrical parts are Schnider
and connection part is SUS 304. We hold the mind that using good
quality units to make good quality machine. We just want to supply
good machine to customers in order to achieve win-win cooperation
situation.
FEATURES OF PRODUCTION LINE
With high result, low power utilization, less rubbing, lower
shearing rate and constrained expelling, the gear has the capacity
to create the lines with an excellent and improved productivity. We
get the programmed temperature control, degassing unit, and direct
current speed guideline which is reasonable for handling PVC dry
mix powder into lines, profiles, and sheets. In the interim, our
hardware parts are brand with a superior presentation. Our machine
idea depends on conservative superior execution expulsion.
Furthermore, the affirmations demonstrate our obligation to ideal
cycles and obligation regarding our current circumstance. We have
refined process innovation and chivalrous administrations which
will cause clients to feel insightful and consoling.
TECHNICAL PARAMETER
Creation Capacity has a cozy relationship with screw size and
engine power. With the accompanying table you can get a generally
outline to our line TWO Strand pipe arrangement.
| MODEL | PIPE DIAMETER (MM) | EXTRUDER MODEL | MOTOR POWER (KW) |
| LB-32F | 16-32 (FOUR PIPE) | SJSZ65/132 | 37 AC |
| LB-32E | 16-32 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-32W | 16-32 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-40E | 16-40 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-40W | 16-40 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-50E | 16-50 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-50W | 16-50 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-63W | 16-63 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
THE PRODUCTION LINE IS COMPOSED OF THE FOLLOWING PARTS:
65 / 132 twin-screw extruder
four cavity die head

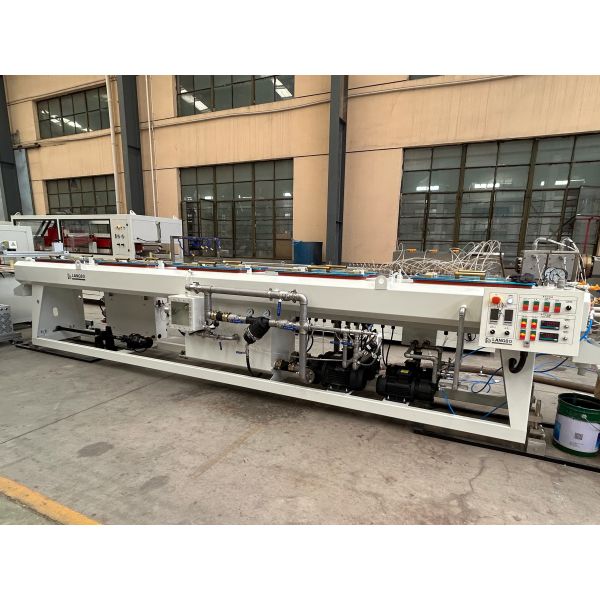

Stainless steel vacuum vacuum calibration tank
Automatic printer spraying moving frame;
Four cavity puller & cutting machine
Stacker
