Reliable WPC Profile Extrusion Line with Energy-saving Motors and
Precise Temperature Control System
Short Description:
WPC profile is widely used and has good market in the whole world.
For the WPC(PP/PE+ wood powder) profile, the weight is heavy so

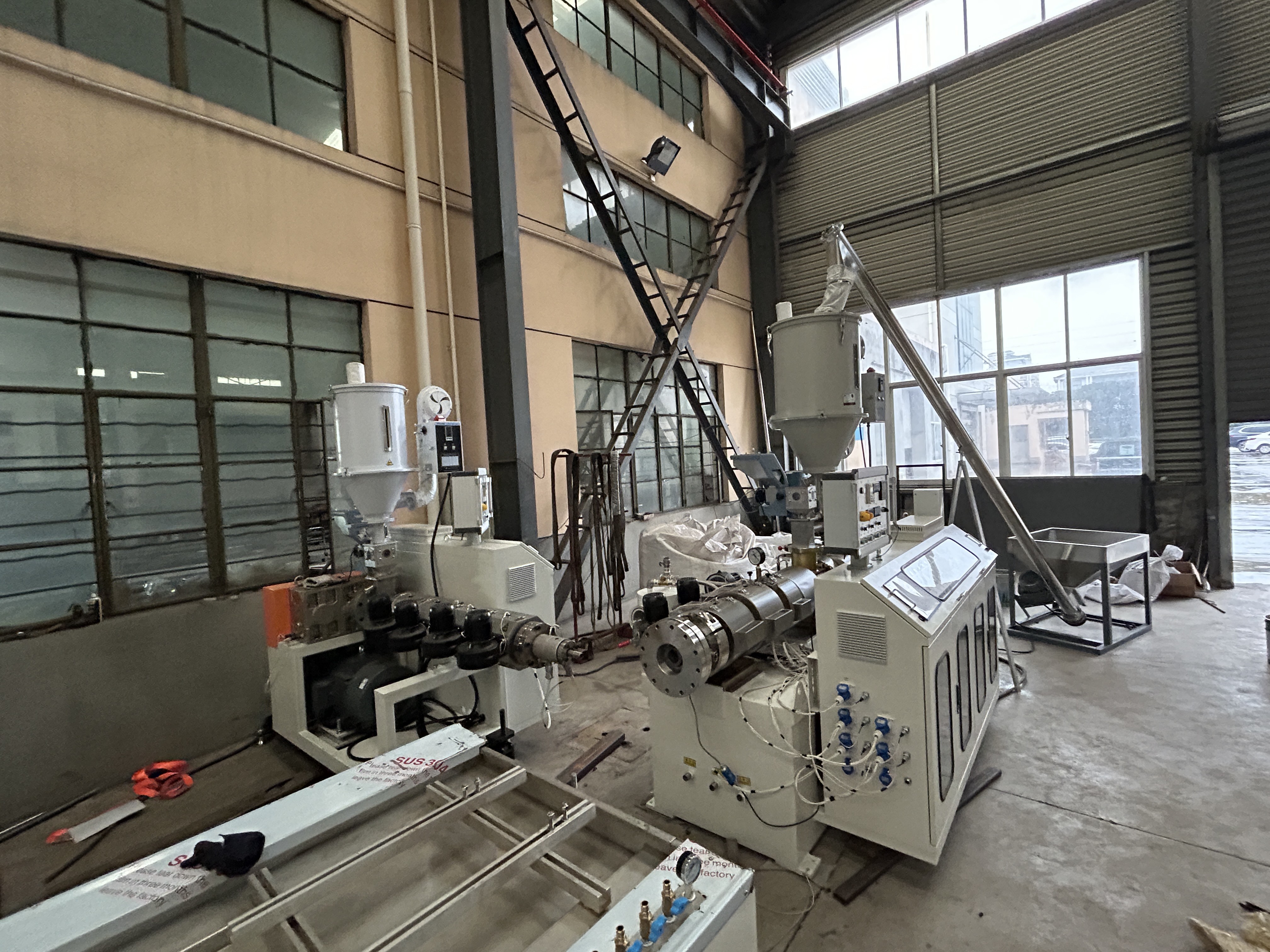

that the haul-off part is unnecessary. For the two layer WPC
profile, a 65/132 conical twin screw extruder and another 65/28
single screw extruder is best design. The 65/132 (37kw) extruder is
main extruder and responsible to the inner layer. The single screw
focuses on the cover. Our extrusion line motor adopts
Siemens-beide. The inverter is ABB inverter. It is famous in the
whole world and has good after-sale service. All the connection is
true SUS304. It ensures the life-long time working time and good

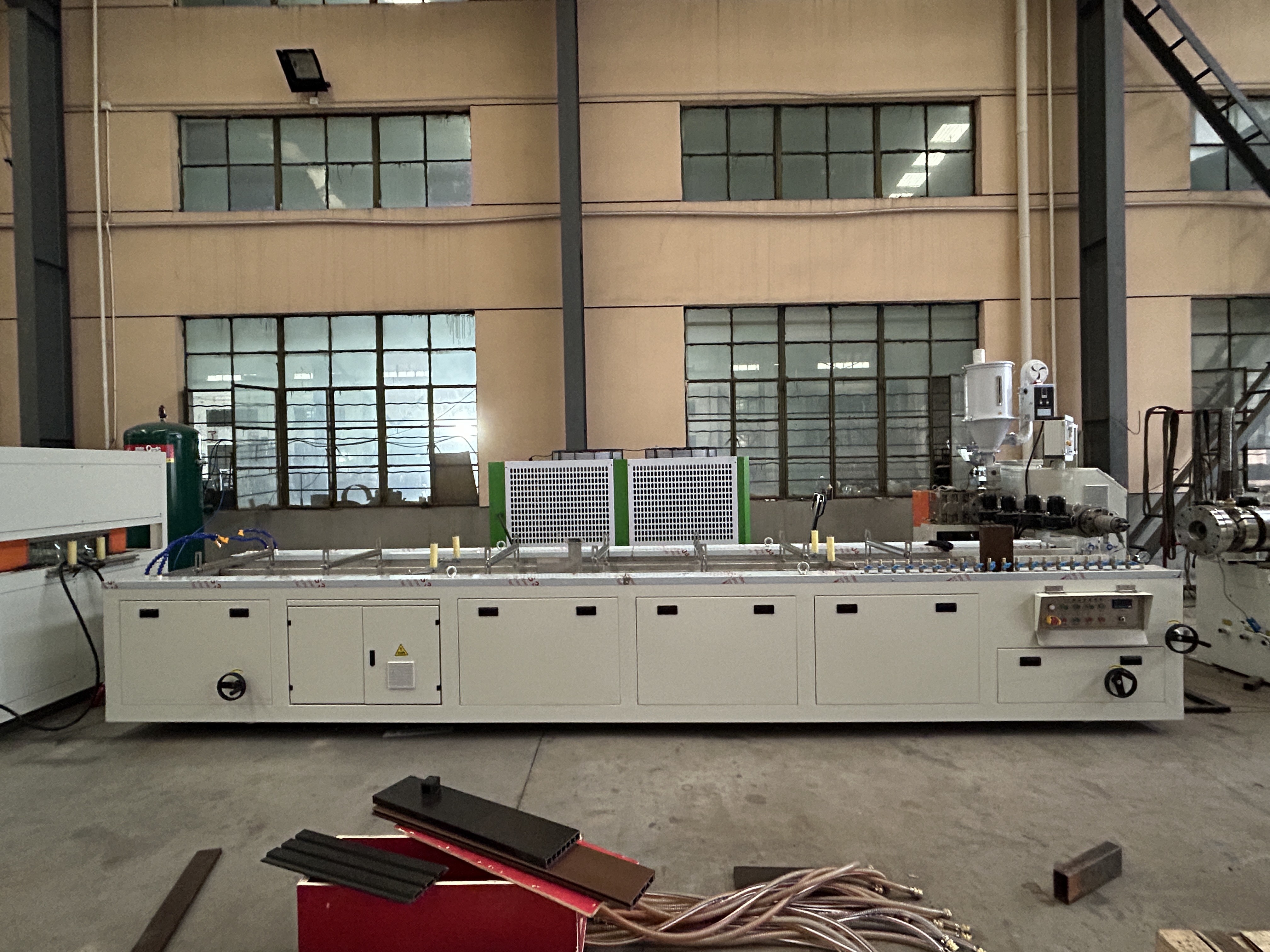

performance. We have 6 meters long calibration table and the cutte
has left and right pressing device. The line adopts saw cutter.

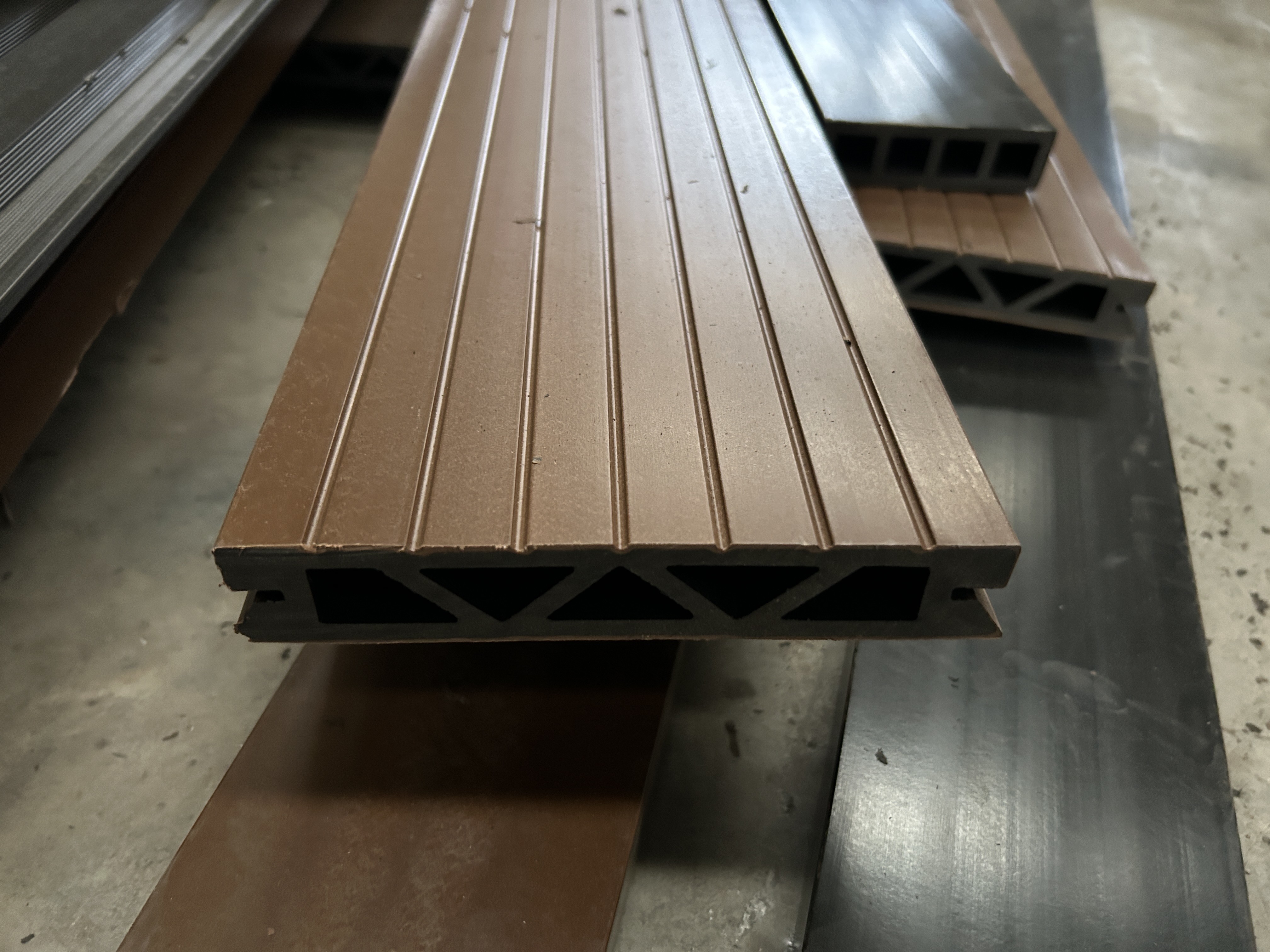

This way is simple and durable performance. After the wpc profile
produced, we have offline sanding machine. After processing by this
machine, the wpc profile surface will be tough. It will be used as
floor and avoid slipping.
Specifications:
| Model | SJZ45 | SJZ51 | SJZ65 | SJZ80 | SJZ92 |
| Screw diameter (mm) | 45/100 | 51/105 | 65/132 | 80/156 | 92/188 |
| Screw rotation speed (r/min) | 4-45.5 | 1-30 | 1-34.7 | 1-36.9 | 1-32.9 |
| The effective length of the screw (mm) | 1000 | 1050 | 1430 | 1800 | 2520 |
| Main motor power (kW) | 15 | 22 | 37 | 55 | 110 |
| Barrel heating power (kW) | 12 | 18 | 24 | 36 | 48 |
| Capacity (kg/h) | 92 | 110 | 250 | 380 | 520 |
| Central height (mm) | 1000 | 1000 | 1000 | 1000 | 1000 |
| Net Weight(kg) | 3000 | 3200 | 5000 | 6500 | 7500 |
Essential details:
Place of Origin:Jiangsu, China (Mainland) Brand Name: Langbo
Plastic Type: PVC/PP/PE Production Capacity (kg/h): 200-400
Machine Type: Extrusion Line Max.Production Capacity (kg/h):
600-800
Voltage: 380V,3Phase,50HZ(customerized) Power (kW):15-110kw
Warranty:1 years Key Selling Points:High quality
Extrusion lines for WPC profile:
With LANGBO MACHINERY polywood technology, it is possible to obtain
WPC profiles composed of natural fiber up to 80%, with features that
make them better than wood in terms of reliability, performance and
production costs. LANGBO MACHINERY also produces systems for the
manufacture of WPC granules, which in turn can be transformed in
finished product through molding or extrusion.
LANGBO MACHINERY builds profile extrusion machine lines suitable
for the production of WPC granules with high-quality mechanical
features, starting from renewable raw materials selected for
environmental protection. These lines are fully customisable and
highly efficient at any production output, thanks to the innovative
extruders and the wide range of modular accessories. Ease of use
and time saving for maintenance and cleaning are always our goals
during the study and design of our granulation lines.
